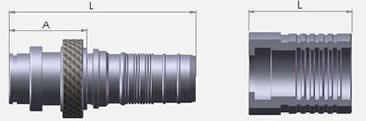

卡箍式二层芯子 Check hoop two-layer core
代 号PART NO.
公称内径 DN
尺寸 DIMERSIONS
A(mm)
L(mm)
DN20SSKVX2-X
20
54
97
DN25SSKVX2-X
25
55
101
DN32SSKVX2-X
32
56
110
DN40SSKVX2-X
40
74
136
DN50SSKVX2-X
50
70
146
DN75SSKVX2-X
75
98
193
卡箍式四层芯子 Check hoop four-layer core
DN75SSKVX4-X
85
227
卡箍式六层芯子 Check hoop six-layer core
DN20SSKVX6-BX
46
122.5
DN25SSKVX6-BX
47
124.5
DN32SSKVX6-BX
69
166
DN40SSKVX6-BX
182.5
DN50SSKVX6-BX
76
188.5
DN63SSKVX6-BX
63
96
230
DN75SSKVX6-BX
84
225
卡箍式二层外套 Check hoop two-layer wrap
代 号
PART NO.
DN20SSKVX2-W
DN25SSKVX2-W
43
DN32SSKVX2-W
51
DN40SSKVX2-W
58
DN50SSKVX2-W
72
DN75SSKVX2-W
91
卡箍式四层外套 Check hoop four-layer wrap
DN75SSKVX4-W
卡箍式六层外套 Check hoop six-layer wrap
DN20SSKVX6-BW
DN25SSKVX6-BW
73
DN32SSKVX6-BW
