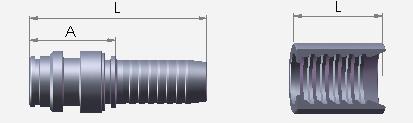

超高压DN系列四层芯子 Super-high pressure DN series four-layer core
代 号PART NO.
公称内径 DN
尺寸 DIMERSIONS
A(mm)
L(mm)
DN32S×4-X
32
65
131
DN40S×4-X
40
71
145
DN50S×4-X
50
72
149
超高压DN系列六层芯子 Super-high pressure DN series six-layer core
DN32S×6-X
DN40S×6-X
73
170
DN50S×6-X
